Mount St. Helen's, Washington State, USA

You are going to fill in the Case Study sheet

volcano case study igcse

TASK 1: LOCATION: Where is Mt. St. Helen's?

Locate on Mt St Helen's on google maps. Take a screenshot of the location within the USA, and a zoomed in view of the mountain. Write a written description in to the case study sheet .

TASK 2: BACKGROUND / LEVEL OF DEVELOPMENT

Research development indicators for the USA such as GNI/ capita; literacy rates; infant mortality to get a sense of the level of economic development. Fill in the box.

volcano case study igcse

TASK 3: CAUSES

When - What date/ time/ year did it erupt? When had the last major eruption been?

Causes of the volcanic eruption. Explain what is/ was happening with the tectonic activity at the plate margins.

What type of volcano is it?

volcano case study igcse

TASK 4: IMPACTS/EFFECTS

What happened? Identify the dangers ie pyroclastic flow? Lahar? Lava flow? etc

How many people died/ were injured/ displaced? Homeless?

Immediate effects - Social, Environmental / Physical, and Economic

Secondary effects ?

TAsk 5: PREDICTION/PREPARATION/ PROTECTION:

Were the people given warning? if so what? What methods of prediction and monitoring were used?

Was is effective? Why or why not?

TASK 6: RESPONSE

Immediate/ Emergency response

Long term response

http://geographyrevisionaqa.weebly.com/mount-st-helens---case-study.html

https://www.edubuzz.org/plhs-geography/wp-content/blogs.dir/1233/files/2011/03/Mount-St.-Helens-Case-Study-Notes.pdf

http://www.geography-site.co.uk/pages/physical/earth/helen.html

https://www.slideshare.net/PLANETGE0GRAPHY/mt-st-helens-case-study

https://www.slideshare.net/missm/mt-st-helens-173645

https://www.bbc.com/bitesize/guides/zgh79qt/revision/8

"On the morningn of May 18th, the volcano‐monitoring data‐‐seismic monitoring, rate of bulge movement, sulfur‐dioxide gas emission, and ground temperature‐‐revealed no unusual changes that could be taken as warning signals for the catastrophe that would strike about an hour and a half later. About 20 seconds after 8:32 a.m. PDT, apparently in response to a magnitude 5.1 earthquake about 1 mile beneath the volcano, the bulged, unstable north flank of Mount St. Helens suddenly began to collapse, triggering a rapid and tragic train of events that resulted in widespread devastation and the loss of 57 people, including volcanologist Johnston"

"Meaningful prediction requires careful monitoring of a volcano’s vital signs. Seismometers can be used to pinpoint earthquakes which track the rise of magma and its movement along fissures. Measurements of the tilt of the entire mountain provide additional information about the “breathing” of the volcano as magma moves inside it. Instruments that sniff SO2, CO2 and other gases also can signal changes in the volcano. At some volcanoes the seismic information seems most reliable, at others the tilt tells the story. But the best predictions come from the combination of all of these methods into a volcano monitoring and prediction system."

https://volcanoworld.wordpress.com/2009/03/06/how-do-volcanologists-predict-volcanic-eruptions/

Week 13 Lesson 3:

Make sure you have finished your case study thoroughly., check your answers for the case study with the answers on the sheet below and add to your answers if you need to - you do not need every bit of information - try to have several examples for each type of impact and response., do the quizlet on mt st helen's case study, 8 mark question practise, why do people live near volcanic hazards, similar to eqs, reasons such as:.

1. They don't know there is a risk of a hazard (lack of education or understanding)

2. They can't afford to leave

3. They have family, cultural, economic ties to the area and don't want to leave

4. They are optimistic and don't think anything bad will happen to them

5. Their fate lies with a higher power

However with Volcanic areas specifically:

1. Geothermal energy can be harnessed by using the steam from underground which has been heated by the Earth's magma. This steam is used to drive turbines in geothermal power stations to produce electricity for domestic and industrial use. Countries such as Iceland and New Zealand use this method of generating electricity.

Volcanoes attract millions of visitors around the world every year. Apart from the volcano itself, hot springs and geysers can also bring in the tourists. This creates many jobs for people in the tourism industry. This includes work in hotels, restaurants and gift shops. Often locals are also employed as tour guides.

3. Mineral availability

Lava from deep within the earth contains minerals which can be mined once the lava has cooled. These include gold, silver, diamonds, copper and zinc, depending on their mineral composition. Often, mining towns develop around volcanoes.

4. Highly Fertile Soil

Volcanic areas often contain some of the most mineral rich soils in the world. This is ideal for farming. Lava and material from pyroclastic flows are weathered to form nutrient rich soil which can be cultivated to produce healthy crops and rich harvests.

NOW, look at stimuli - what do the 3 figures tell us? What do we know in addition to this about social / economic reasons for living in volcanic areas? How can we use the figures as evidence for what we are saying?

This question is about investigating why people live in Sicily despite there being near an active volcano on the island.

Candidates should break down the response into components – in this case the factors identified in Fig. 2, the type of jobs residents may do and how they are related to volcanic land.

Candidates should relate the factors to the map (Fig 1) by identifying the type of activities that take place on the island and linking this to the main economic sector of Sicily. The picture (Fig 3) should also be referred to, to back up points made.

To access level 3, Figures 1, 2 and 3 need to be used

ANSWER KEY:

The indicative content below is not prescriptive and candidates are not required to include all of it. Other relevant material not suggested below must also be credited.

Volcanic ash makes land fertile so excellent soil for growing fruit crops including grapes for wine industry

Active volcano is draws in tourists many businesses set up to accommodate visitors

Some local industry grown to create items for tourists - souvenirs, wine etc

Construction is quite high - building to accommodate tourist industry and ensure old buildings are looked after as part of cultural heritage.

Beautiful landscapes and climate to attract visitors

Map - identifying types of farming and tourist activities - reasons for high amount of services

Pie chart - identifying what type of jobs people are doing

Photograph - shows cultural heritage, near volcano, beautiful landscape, Mediterranean climate

volcano case study igcse

Volcanoes Quizlet

volcano case study igcse

  • Age: 14-16 MYP Individuals and Societies
  • Age: 14-16 GCSE / IGCSE Geography
  • Natural Environments
  • Economic Development
  • IGCSE Geography Revision Question Bank
  • 2.1 Earthquakes and volcanoes
  • 2.4 Weather
  • 2.5 Climate and natural vegetation
  • Distribution
  • Plate Tectonics
  • Plate Boundaries | Plate Margins
  • Volcano case study - Mount Etna (2002-2003), Italy

Volcano case study - Mount Nyiragongo, Democratic Republic of Congo

  • Volcanic hazard management - Mount Rainier, USA
  • Earthquakes
  • Earthquake case study - 2005 Kashmir
  • Earthquake case study - Chuetsu Offshore Earthquake - 2007
  • Why was the Haitian Earthquake so deadly?
  • Earthquakes - Managing the hazard

Watch this video clip about Mount Nyiragongo, Democratic Republic of Congo - it also makes a mini tourism case study.

Case study task

Use the resources and links that can be found on this page to produce a detailed case study of the 2002 eruption of Mount Nyiragongo. You should use the 'Five W's" subheadings to give your case study structure.

What happened?

BBC News - Congo volcano 'kills dozens' [18 January 2002]

When did it happen?

Wikipedia - Mount Nyiragongo

Where did it happen?

Why did it happen.

NOVA - Volcano under the City

Who was affected by it happening?

Goma Town Centre - 27 Jan 2002

BBC News - Goma: Eruption aftermath [23 January 2002]

BBC News - Goma: One month on [26 February 2002]

You should be able to use the knowledge and understanding you have gained about 2002 eruption of Mount Nyiragongo to answer the following exam-style question:

In many parts of the world, the natural environment presents hazards to people. Choose an example of one of the following: a volcanic eruption, an earthquake, a drought. For a named area, describe the causes of the example which you have chosen and its impacts on the people living there. [7 Marks]

  • Comment on Twitter

Earthquakes and volcanoes

Study and revision resources.

i-study store link

1. Plate Tectonics

Structure of the earth.

The earth consists of 4 main layers:

  • The  crust  is the outer layer, broken into sections caled tectonic plates. It is the thinnest layer and the one which we live on.
  • The  mantle  is the thickest layer and consists of molten rock
  • The  outer core  is molten & about 3000 degrees C.
  • This  inner core  is solid due to the immense pressure and is about 5000 degrees C.
  • Both the inner & outer core consist of iron & nickle.

Tectonic Plates

Plate Movement

The earths crust is broken into different sections which are slowly moving about.

Convection currents in the mantle distribute the heat from the core. This movement drags the plates in different directions and is responsible for earthquakes and volcanoes.

Over millions of years the land masses that we are familiar with have moved around the planet as the tectonic plates shifted about.

Where the different sections of tectonic plate meet the movement causes geographical features such as mountains, volcanoes and earthquakes.

Constrcutive Boundaries

  • Convection currents in the mantle drag the plates apart.
  • Magma rises to fill the gap and solidifies to form new crust.
  • As the process repeats a ridge is formed and this slowly gets wider as the plates continue to seperate.
  • Example: the Mid-Atlantic Ridge.
  • This creates fissure volcanoes which are long cracks, they are less explosive.

Constructive boundary

Destructive Boundaries

  • Oceanic & continental plates collide. The oceanic plate is denser and so sinks under the continental plate.
  • As the oceanic plate sinks it takes some sand, water and other materia from the sea bed with it. This melts and is gaseous which causes it to force its way up to the surface as a volcano.
  • The continental plate crumples at the edge creating fold mountains in addition to the volcanoes.

Collision Boundary

  • Convection currents in the mantle pull two plates of continental crust together.
  • Since both crusts are made of the same material and have equal density neither subducts. They crumple up.
  • This process creates fold mountains. There are no volcanoes at these boundaries but earthquakes occur.
  • Example: the Himalayas.

2. Volcanoes

Types of Volcano

  • Shield : gentle sloping, created by basic lava (travels along way before solidifying). Found at constructive boundaries.
  • Composite : alternating layers of acid lava & rock/ash create the classic conical shape. Found at destructive boundaries.
  • Ash & cinder : Alternating layers of ash & cinder compacted.
  • Fissure : volcanoes running along a crack in the crust, usually a constructive boundary.
  • Caldera : Crater volcano created after volcano collapses in on itself having emptied the magma chamber.
  • Dome : steep sided volcano created by acid lava which cools before it has travelled far.
  • Destructive boundary volcanoes are often cone shaped and explosive.
  • Constructive boundary volcanoes are often more gently sloped and have less violent erruptions.

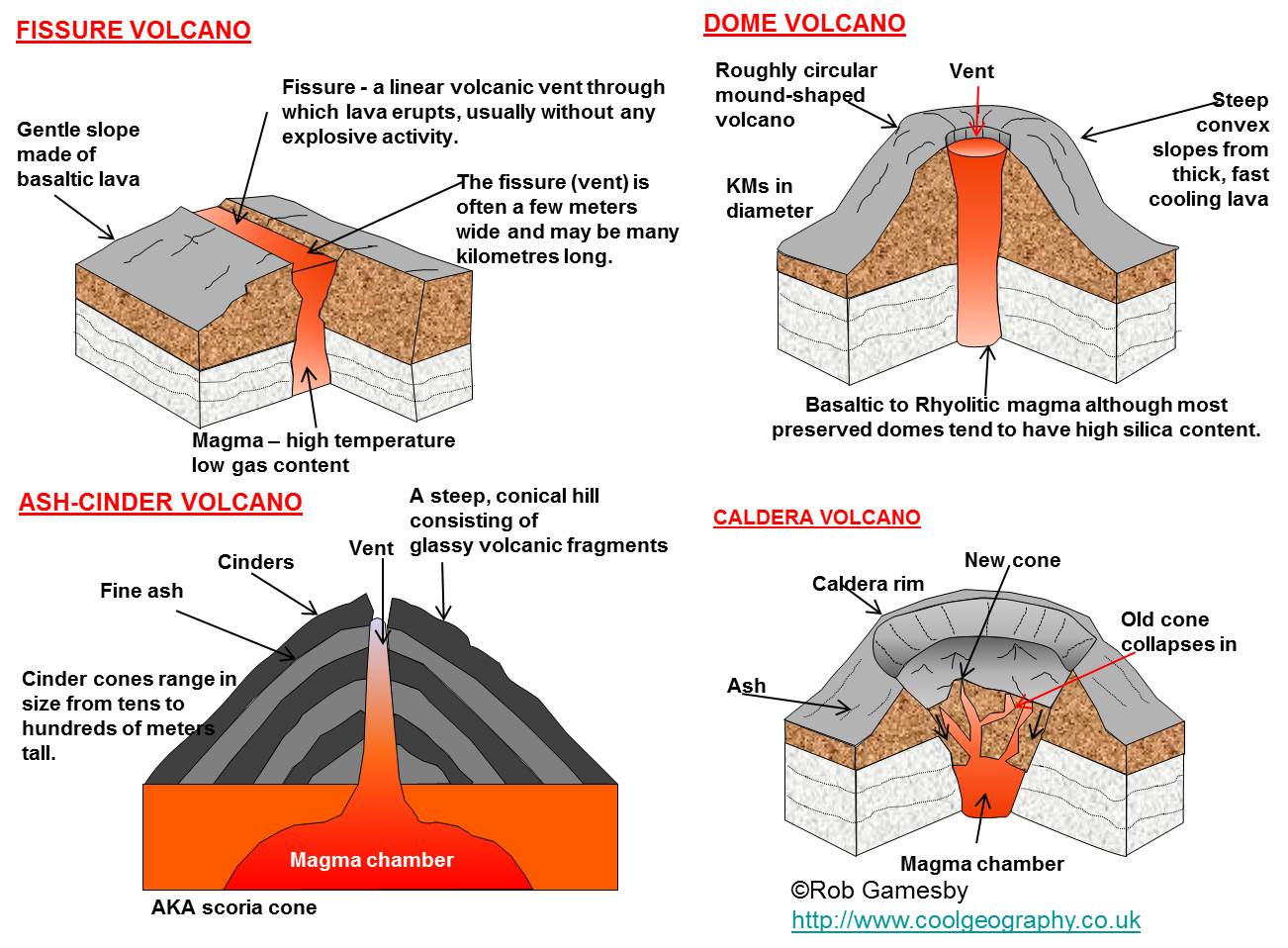

volcano types

Volcanic Features

Objective: be able to correctly label the key features of volcanoes and relate them to the increased risk they pose to human settlements.

  • Volcanoes vary in shape and structure depending on the reason for their existence.
  • Secodary vents (fumaroles) occur when magma and gases force their way through weaknesses in the main volcanic structure.
  • Lava, ash, cinders and smoke may be ejected from the vent.
  • Draw and label a simple diagram of a volcano and the ejected material.
  • Make simple sketch diagrams showing fissure, dome and ash-cinder volcanic structures.
  • Using Figure 2.0, describe the location of the Pacific Ring of Fire and explain why this area has this name.

Volcano characteristics diagram

Costs & Benefits of Volcanic Environments

Negative Impacts

  • Volcanic eruptions can cause significant damage and loss of life.
  • Lava flows destroy vegetation buildings and roads.
  • Ash can smother plants, cut out light in the atmosphere, disrupt air travel and cause respiration problems for people.
  • Eruptions often cause earthquakes as pressure is released.
  • Volcanoes with ice near the peak, or crater lakes can cause devastating mud flows as the water mixes with loose ash.
  • Gas released from volcanoes can travel down the slopes silently killing people and animals.

Positive Impacts

  • Volcanoes can bring environmental and socio-economic benefits.
  • Fertile soils: ash and lava contain many minerals and nutrients that weather to form fertile soils which can be used very effectively for farming.
  • Sulphur deposits: sulphur is mined and sold by the people living close to volcanoes in Indonesia.
  • Tourism: the volcanic scenery, crater lakes, hot spring and geysers attract tourists and create many job opportunities.

Case Study: Montserrat

Objective: be able to describe the main events and damage caused by the volcano. You should be able to suggest reasons for the extent of the damage.

Montserrat is an island in the Caribbean that unexpectedly suffered devastating eruptions.

  • Using the google map shown to the right, describe the location of Montserrat on a regional scale.
  • Draw a sketch map showing the location of the Sufriere Hills volcano within the island.
  • Explain the cause of the volcano
  • Describe the main effects/impacts of the eruptions
  • Why did they cause so much damage on the island?
  • Make a sketch of Figure 2.1 to show the hazard map and restricted zones that are in place on Montserrat since the eruption.

Montserrat hazard map

3. Earthquakes

Earthquake Characteristics

  • Focus: the exact point at which the earthquake occurred- often deep in the ground.
  • Epicentre: the point on the surface of the earth directly above the focus (so it can be located easily on maps).
  • Seismic waves: these are the shockwaves that move outwards from the focus. Their energy disipates the further they travel.
  • Seismometer: instrument that measures the magnitude of earthquakes.

earthquake characteristics

Risk factors and Earthquakes

Objective: Demonstrate an ability to to identify factors that can affect the scale of a disaster and be able to link them to levels of development.

  • Watch Video 2.1.2
  • Describe why older building tend to suffer more damage in earthquakes than newer ones.
  • Why do buildings built on soft land suffer more than those with foundations on rock?
  • Why can hospitals outside towns add to the problems?

Measuring Earthquakes

  • Seismometer: a machine that records vibrations in the earth.
  • Seismograph : the print out/graph produced by the seismometer.
  • Richter scale : the sale traditionally used to record the magnitude of an earthquake.
  • Movement Magnitude Scale: the scale often used currently to record the magnitude of earthquakes (it is more accurate for large earthquakes than the Richter scale.

Case Study: Haiti

Cause & Effect of the Haiti Earthquake

Objectives:

  • Understand the cause of the Haiti earthquake.
  • Demonstrate an ability to interpret information shown in photographs.
  • Demonstrate analytic and reasoning skills in relation to development and disaster impacts.
  • Describe the location and cause of the earthquake.
  • Go to this page BBC bitesize. Describe the key facts about the damage it caused.

Responses to the Earthquake

  • Watch Videos 2.1.3 and 2.1.4
  • Go to these links Guardian: Haiti 2015 and Haiti then & now .
  • How well has Haiti recovered from the earthquake?
  • Describe three reasons why there are still lots of problems in Haiti 5 years on from the earthquake.

Extended Writing Task

Explain why the less developed a country is the more it is likely to suffer if an earthquake occurs. (you should write about a page in your book to answer this. Factors to include: preparation, emergency response, rebuilding/reconstruction.

4. Revision

Revision Guides

Cambridge IGCSE Geography Revision

A guide to the Cambridge IGCSE Geography Syllabus for 2020

Other Revision Websites

  • IGCSE Biology
  • IGCSE Chemistry

Wednesday 20 July 2016

Case study: an earthquake and a volcano, 3 comments:.

volcano case study igcse

I'm very much inspired when I've visited your blog. Your blog is really informative. Hope you will continue with new article. Geography curriculum

very useful

Our blog is very informative thumps up

Volcano case studies

Volcano case studies You should make sure you are familiar with 2 case studies: Either: Nyiragongo, Democratic Republic of Congo – Poor Country or Montserrat, Caribbean – Poor Country AND Either: Mount St. Helens, USA – Rich Country or Iceland – Rich Country

Key terms: Primary effects: the immediate effects of the eruption, caused directly by it Secondary effects: the after-effects that occur as an indirect effect of the eruption on a longer timescale Immediate responses: how people react as the disaster happens and in the immediate aftermath Long-term responses: later reactions that occur in the weeks, months and years after the event Nyiragongo Picture The video below contains more information on the primary and secondary effects of a volcano

On 17th January 2002 Nyiragongo volcano in the Democratic Republic of Congo (DRC) was disturbed by the movement of plates along the East African Rift Valley. This led to lava spilling southwards in three streams.

The primary effects – The speed of the lava reached 60kph which is especially fast. The lava flowed across the runway at Goma airport and through the town splitting it in half. The lava destroyed many homes as well as roads and water pipes, set off explosions in fuel stores and powerplants and killed 45 people

The secondary effects – Half a million people fled from Goma into neighbouring Rwanda to escape the lava. They spent the nights sleeping on the streets of Gisenyi. Here, there was no shelter, electricity or clean water as the area could not cope with the influx. Diseases such as cholera were a real risk. People were frightened of going back. However, looting was a problem in Goma and many residents returned within a week in hope of receiving aid.

Responses – In the aftermath of the eruption, water had to be supplied in tankers. Aid agencies, including Christian Aid and Oxfam, were involved in the distribution of food, medicine and blankets.

Montserrat – Poor country case study

Montserrat – Ledc Case Study from donotreply16 Mount St Helens – Rich country case study Picture Mount St. Helens is one of five volcanoes in the Cascade Range in Washington State, USA. The volcano erupted at 8:32am on 18th May 1980.

Effects – An earthquake caused the biggest landslide ever recorded and the sideways blast of pulverised rock, glacier ice and ash wiped out all living things up to 27km north of the volcano. Trees were uprooted and 57 people died.

Immediate responses – helicopters were mobilised to search and rescue those in the vicinity of the catastrophic blast. Rescuing survivors was a priority, followed by emergency treatment in nearby towns. Air conditioning systems were cleaned after by clogged with ash and blocked roads were cleared. Two million masks were ordered to protect peoples lungs.

Long-term responses – Buildings and bridges were rebuilt. Drains had to be cleared to prevent flooding. The forest which was damaged had to be replanted by the forest service. Roads were rebuilt to allow tourists to visit. Mount St. Helens is now a major tourist attraction with many visitor centres.

Iceland – Rich country case study Picture Location: Iceland lies on the Mid-Atlantic Ridge, a constructive plate margin separating the Eurasian plate from the North American plate. As the plates move apart magma rises to the surface to form several active volcanoes located in a belt running roughly SW-NE through the centre of Iceland. Eyjafjallajokull (1,666m high) is located beneath an ice cap in southern Iceland 125km south east of the capital Reykjavik

The Eruption: In March 2010, magma broke through the crust beneath Eyjafjallajokull glacier. This was the start of two months of dramatic and powerful eruptions that would have an impact on people across the globe. The eruptions in March were mostly lava eruptions. Whilst they were spectacular and fiery they represented very little threat to local communities, However, on 14th April a new phase began which was much more explosive. Over a period of several days in mid-April violent eruptions belched huge quantities of ash in the atmosphere.

Local impacts and responses: The heavier particles of ash (such as black gritty sand) fell to the ground close to the volcano, forcing hundreds of people to be evacuated (immediate response) from their farms and villages. As day turned to night, rescuers wore face masks to prevent them choking on the dense cloud of ash. These ash falls, which coated agricultural land with a thick layer of ash, were the main primary effects of the eruption. One of the most damaging secondary effects of the eruption was flooding. As the eruption occurred beneath a glacier, a huge amount of meltwater was produced. Vast torrents of water flowed out from under the ice. Sections of embankment that supported the main highway in Southern Iceland were deliberately breached by the authorities to allow floodwaters to pass through to the sea. This action successfully prevented expensive bridges being destroyed. After the eruption, bulldozers were quickly able to rebuild the embankments and within a few weeks the highway was reconstructed.

Local impacts: 800 people evacuated Homes and roads were damaged and services (electricity & water) disrupted Local flood defences had to be constructed Crops were damaged by heavy falls of ash Local water supplies were contaminated with fluoride from the ash

National impacts: Drop in tourist numbers – affected Iceland’s economy as well as local people’s jobs and incomes Road transport was disrupted as roads were washed away by floods Agricultural production was affected as crops were smothered by a thick layer of ash Reconstruction of roads and services was expensive

International impacts: Over 8 days – some 100,000 flights were cancelled 10 million air passengers affected Losses estimated to be £80 million Industrial production halted due to a lack of raw materials Fresh food could not be imported Sporting events such as the Japanese Motorcycle grand prix, Rugby leagues challenge cup and the Boston Marathon were affected

International impacts and responses: The eruption of Eyjafjallajokull became an international event in mid-April 2010 as the cloud of fine ash spread south-eastwards toward the rest of Europe. Concerned about the possible harmful effects of ash on aeroplane jet engines, large sections of European airspace closed down. Passenger and freight traffic throughout much of Europe ground to a halt. The knock-on effects were extensive and were felt across the world. Business people and tourists were stranded unable to travel in to or out of Western Europe. Industrial production was affected as raw materials could be flown in and products could not be exported by air. As far away as Kenya, farm workers lost their jobs or suffered pay cuts as fresh produce such as flowers and bean perished, unable to be flown to European supermarkets. The airline companies and airport operators lost huge amounts of money. Some people felt that the closures were an over-reaction and that aeroplanes could fly safely through low concentrations of ash. However, a scientific review conducted after the eruption concluded that under the circumstances it had been right to close the airspace. Further research will be carried out as a long-term response to find better ways of monitoring ash concentrations and improving forecast methods.

Case Study Hub | Samples, Examples and Writing Tips

Case study on volcanoes, volcanoes case study:.

Volcano is a geological phenomenon, characterized with the opening in the surface of the planet through which magma comes from the inner side of the planet in the form of lava, volcanic stones and gases. Volcano is considered to be a serious natural disaster, which causes death to everything alive and enormous damage to the buildings and surface of the land. Since time immemorial volcanoes frightened people of all ages and were the reason of deaths and catastrophes.

We can write a Custom Case Study on Volcanoes for you!

The most well-known historical fact connected with volcano eruption is the eruption in Pompeii. The eruption of the volcano of Mount Vesuvius caused thousands of deaths of people and destroyed the whole town Pompeii, which became a symbol of the effect of volcanic eruptions.

Volcanoes are classified into several types: active, inactive and extinct. Active volcanoes are those, which erupt in our times, so that we can see this process now. Inactive volcanoes have been active some time before, but there is a possibility that they will erupt in any moment.

Vesuvius was considered a sleeping or inactive volcano but suddenly destroyed the whole town. Finally, extinct volcanoes are believed like the dead ones or volcanoes which will never erupt any more. Volcanic eruption causes not only damage with lava but volcanic dust which fills the air during the eruption can cause troubles and air catastrophes, so all the flights before and after eruption are cancelled.

It is quite difficult to predict the volcanic eruption, but geologists have got reliable equipment, which predicts eruption without mistakes. Years ago the best way to predict earthquakes and volcanic eruptions was to observe the behavior of the domestic animals. For example, cats, dogs and cattle feel these natural disasters several days earlier and give the chance to escape in time. When one is asked to complete a good case study, he has to research the general information about volcanoes in order to realize the mechanism of their activity and their cause and effect sides. One can spend much time to investigate the problem profoundly and even more time to research the suggested case for the analysis. A well-investigated case is the key to success of the whole paper, so one should read encyclopedias and periodicals to collect data about the case and draw smart conclusions after the analysis.

Very often the best way to find information about the case and the way of its analysis is a free case study on volcanoes in Iceland. Most papers in the Internet are prepared by the professional writers who have devoted much time to give students the idea of proper paper writing. If you read free sample case studies on volcanoes in the web, you will manage to compose and format the best paper of this type.

*** WARNING! Free case study samples and examples on Volcanoes are 100% plagiarized!!!

At EssayLib.com writing service you can buy a custom case study on Volcanoes topics. Your case study will be written from scratch. We hire top-rated Ph.D. and Master’s writers only to provide students with professional case study help at affordable rates. Each customer will get a non-plagiarized paper with timely delivery. Just visit our website and fill in the order form with all paper details:

Custom Case Study on Volcanoes

Related Posts:

  • Health Management: Business Case Study
  • Case Study on Zappos – How They Did It
  • Apple Inc Case Study Sample
  • Case Study – Zara International: Fashion at…

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

share this!

November 21, 2023 report

This article has been reviewed according to Science X's editorial process and policies . Editors have highlighted the following attributes while ensuring the content's credibility:

fact-checked

peer-reviewed publication

trusted source

Global view of Io's volcanic activity suggests that tidal heating is concentrated within its upper mantle

by Bob Yirka , Phys.org

Global view of Io's volcanic activity suggests that tidal heating is concentrated within its upper mantle

Journal information: Nature Astronomy

© 2023 Science X Network

Explore further

Feedback to editors

volcano case study igcse

This sea worm's posterior swims away, and now scientists know how

2 hours ago

volcano case study igcse

Research challenges widespread belief that honeybees naturally insulate their colonies against cold

12 hours ago

volcano case study igcse

Chlorine disinfectant is no more effective than water at killing off hospital superbug, new study shows

volcano case study igcse

The first eco-friendly fluorescent artificial seed for monitoring soil temperature by using drones

14 hours ago

volcano case study igcse

The bilingual brain may be better at ignoring irrelevant information

15 hours ago

volcano case study igcse

Study finds female academics less likely to win prizes, even when the award is named after a woman

volcano case study igcse

Bacteria store 'memories' and pass them on for generations, study finds

16 hours ago

volcano case study igcse

Dwarf galaxies use 10-million-year quiet period to churn out stars

volcano case study igcse

Curators and cavers: How a tip from a citizen scientist led to deep discoveries in Utah's caves

volcano case study igcse

Nano-sized probes reveal how cellular structure responds to pressure

17 hours ago

Relevant PhysicsForums posts

Three body problem, planets around brown dwarfs, how to calculate aphelion distance.

Nov 20, 2023

What keeps most galactic stars from falling into the centeral black hole?

Nov 18, 2023

Number of atoms in the Universe

Nov 17, 2023

Our Beautiful Universe - Photos and Videos

Nov 16, 2023

More from Astronomy and Astrophysics

Related Stories

volcano case study igcse

Io has 266 active volcanic hotspots linked by a global magma ocean, finds study

Oct 26, 2023

volcano case study igcse

Juno completes its closest flyby of Io yet

Oct 20, 2023

volcano case study igcse

Hydrogen peroxide found on Jupiter's moon Ganymede in higher latitudes

Jul 24, 2023

volcano case study igcse

Large sub-surface granite formation signals ancient volcanic activity on moon's dark side

Jul 5, 2023

volcano case study igcse

Penetrating radar aboard the Chang'E-4 rover reveals layers of the moon's history

Aug 22, 2023

volcano case study igcse

Theoretical model suggests saltiness of Enceladus's oceans may be right to sustain life

Jul 25, 2022

Recommended for you

volcano case study igcse

A radically new view on dwarf galaxies surrounding the Milky Way

volcano case study igcse

Hydrogen detected in lunar samples, points to resource availability for space exploration

19 hours ago

volcano case study igcse

Physicists answer question of Supergalactic Plane's absent spiral galaxies

volcano case study igcse

'Teenage galaxies' are unusually hot, glowing with unexpected elements

volcano case study igcse

'Triple star' discovery could revolutionize understanding of stellar evolution

Let us know if there is a problem with our content.

Use this form if you have come across a typo, inaccuracy or would like to send an edit request for the content on this page. For general inquiries, please use our contact form . For general feedback, use the public comments section below (please adhere to guidelines ).

Please select the most appropriate category to facilitate processing of your request

Thank you for taking time to provide your feedback to the editors.

Your feedback is important to us. However, we do not guarantee individual replies due to the high volume of messages.

E-mail the story

Your email address is used only to let the recipient know who sent the email. Neither your address nor the recipient's address will be used for any other purpose. The information you enter will appear in your e-mail message and is not retained by Phys.org in any form.

Newsletter sign up

Get weekly and/or daily updates delivered to your inbox. You can unsubscribe at any time and we'll never share your details to third parties.

More information Privacy policy

Donate and enjoy an ad-free experience

We keep our content available to everyone. Consider supporting Science X's mission by getting a premium account.

E-mail newsletter

  • 0 Shopping Cart

Internet Geography

Welcome to the volcanoes main menu

Volcanoes Main Menu

Use the images below to explore this topic.

What is a volcano?

Image of the Kerid Crater, Iceland

Where are volcanoes located?

What is the Ring of Fire?

What are active, dormant and extinct volcanoes?

What are the main features of a volcano?

What are the different types of volcano?

What are lahars and pyroclastic flows?

What is a supervolcano?

Why do people live close to volcanoes?

Can the risks of volcanic eruptions be reduced?

The 1980 eruption of Mount St Helens

The 1991 eruption of Mount Pinatubo

The 2000 eruption of Popocatepetl

The 2010 eruption of Mount Merapi

The 2010 eruption of Eyjafjallojokull

Anak Krakatau & Sunda Strait Tsunami Indonesia Case Study 2018

Share this:

  • Click to share on Twitter (Opens in new window)
  • Click to share on Facebook (Opens in new window)
  • Click to share on Pinterest (Opens in new window)
  • Click to email a link to a friend (Opens in new window)
  • Click to share on WhatsApp (Opens in new window)
  • Click to print (Opens in new window)

Please Support Internet Geography

If you've found the resources on this site useful please consider making a secure donation via PayPal to support the development of the site. The site is self-funded and your support is really appreciated.

Search Internet Geography

Top posts and pages.

Home

Latest Blog Entries

A map to show the location of the Reykjanes peninsula

Pin It on Pinterest

  • Click to share
  • Print Friendly

IMAGES

  1. Super volcano case study

    volcano case study igcse

  2. Eyjafjallajökull, Iceland 2010 (Volcano Case Study)

    volcano case study igcse

  3. LEDC Volcano Case Study

    volcano case study igcse

  4. Geography Lesson- Eyjafjallajökull Volcano Case Study

    volcano case study igcse

  5. IGCSE Geography; earthquakes and volcanoes

    volcano case study igcse

  6. IGCSE Geography; earthquakes and volcanoes

    volcano case study igcse

COMMENTS

  1. Case study

    Eduqas Volcanoes and volcanic eruptions - Eduqas Case study - volcanic eruption - La Palma, 2021 Composite and shield volcanoes are found along plate boundaries. They have distinctive...

  2. Volcano case study

    Case study task Use the resources and links that can be found on this page to produce a detailed case study of the 2002-2003 eruption of Mount Etna. You should use the 'Five W's" subheadings to give your case study structure. What happened? The Guardian - Sicilian city blanketed in ash [28 October 2002] When did it happen?

  3. CAIE IGCSE Geography 0460 Case Studies Revision Notes

    IGCSE Geography 0460 ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ Best free resources for CAIE IGCSE Geography 0460 Case Studies including summarized notes, topical and past paper walk through videos by top students.

  4. Case study: volcanic eruption

    GCSE Volcanoes - WJEC Case study: volcanic eruption - Mt Merapi, Indonesia 2010 Composite and shield volcanoes are found along plate boundaries. They have distinctive characteristics...

  5. Eyjafjallajokull Case Study

    Eyjafjallajokull Case Study What is Eyjafjallajokull? Eyjafjallajokull is a volcano located in Iceland. The name is a description of the volcano with Eyja meaning island; fjalla meaning mountain; and jokull meaning glacier. You can find out how to pronounce Eyjafjallajokull on the BBC website.

  6. Earthquakes & Volcanoes

    Easy Medium Hard Model Answers 1 4 marks Describe the benefits of living near volcanoes. [4] How did you do? Stuck? View related notes Did this page help you? Next question Exam paper questions organised by topic and difficulty. Our worksheets cover all topics from GCSE, IGCSE and A Level courses. Give them a try and see how you do!

  7. PDF Volcano case studies presentation

    Eyjafjallajökull 2010 eruption Eyjafjallajökull (ey-yah-fyal-lah-yo-kul) is a stratovolcano situated in southern Iceland. Like other volcanoes in Iceland, Eyjafjallajökull lies beneath an ice cap which is 200m thick and 100km2 in area.

  8. PDF GEOGRAPHY

    particularly the case studies on population policy, causes of a volcanic eruption and transnational corporations. Whilst some included unnecessary general introductions with irrelevant information about the topic being tested, the best of these answers were well focused and understood, with developed or linked ideas and place specific information.

  9. Volcanoes and volcanic eruptions

    GCSE Edexcel Volcanoes and volcanic eruptions - Edexcel Case study - Mt Nyiragongo -developing country Composite and shield volcanoes are found along plate boundaries. They have...

  10. 2021/22 IGCSE Geography

    Mount St. Helen's, Washington State, USA

  11. Volcano case study

    [19 August 2008] Activities Case study task Use the resources and links that can be found on this page to produce a detailed case study of the 2002 eruption of Mount Nyiragongo. You should use the 'Five W's" subheadings to give your case study structure. What happened? BBC News - Congo volcano 'kills dozens' [18 January 2002] When did it happen?

  12. Case study: Yellowstone

    Case study: Yellowstone. A hydrothermal feature at Yellowstone. Yellowstone is one example of a supervolcano. Three huge eruptions have happened in the last 3 million years. The last eruption was ...

  13. Reducing the Impact of Earthquakes & Volcanoes (2.1.6)

    Explain how new buildings can be earthquake-proofed, so they are less likely to be damaged in an earthquake. [4] Answer: Build deep/stronger/sturdier foundations/base [1]; Reinforce/use concrete/bricks for buildings/walls/roofs [1]; Use metal/steel/aluminium beams [1]; Use diagonal bracing [1]; Flexible building materials [1]; Use dampers/shock absorbers in base of building [1]

  14. CASE STUDY EARTHQUAKE AND VOLCANO IGCSE GEOGRAPHY

    Full case study description of volcanoes and earthquake

  15. IGCSE Geography; earthquakes and volcanoes

    1. Plate Tectonics 2. Volcanoes 3. Earthquakes 4. Revision Free comprehensive igcse revision and study material; earthquakes and volcanoes

  16. case study: an earthquake and a volcano

    case study: an earthquake and a volcano •case study of an earthquake: Haiti (2010) •scored 7 on the Richter scale •25km radius from the epicentre - Port au Prince •13km depth - very shallow (focus point) •causes for earthquakes in Haiti and failure •conservative plate boundary of Northern American Plate and the Caribbean Plate •lies on a fault line

  17. Volcano locations

    My Bitesize GCSE AQA Volcanoes - AQA Volcano locations Composite and shield volcanoes are found along plate margins. They have distinctive characteristics and can have both positive and...

  18. Tectonic hazards and volcanoes guide for KS3 geography students

    Key points A volcano is a hazard caused by plate tectonics. Volcanic eruptions have both primary effects (such as the destruction of buildings) and secondary effects (such as homelessness)....

  19. Volcano case studies

    Picture Mount St. Helens is one of five volcanoes in the Cascade Range in Washington State, USA. The volcano erupted at 8:32am on 18th May 1980. Effects - An earthquake caused the biggest landslide ever recorded and the sideways blast of pulverised rock, glacier ice and ash wiped out all living things up to 27km north of the volcano.

  20. Free Case Study on Volcanoes

    Volcanoes Case Study: Volcano is a geological phenomenon, characterized with the opening in the surface of the planet through which magma comes from the inner side of the planet in the form of lava, volcanic stones and gases. Volcano is considered to be a serious natural disaster, which causes death to everything alive and enormous damage to ...

  21. Global view of Io's volcanic activity suggests that tidal heating is

    Hot spot detections. The maximum, unsaturated 4.8 μm (M-band) spectral radiances from 266 hot spots identified in Juno JIRAM data obtained from March 2017 to July 2022, using data from orbits PJ5 ...

  22. iGCSE Geography

    Learn Test Match Created by IamJP2 Terms in this set (14) Location for volcano case study Chances' Peak, Montserrat On what plates is Montserrat located Destructive boundary between the Caribbean and North American plate Effects of eruption on Montserrat - Damage to wildlife - Land covered by lahars - Death to inhabitants

  23. White Island Volcano Case Study

    White Island Volcano Case Study New Zealand's Whakaari/White Island volcano erupted on Monday 9th December 2019. The strato or composite volcano, located on New Zealand's east coast, erupted at 14:11 NZDT on 9 December 2019.

  24. Volcanoes

    Volcanoes - Find out about the characteristics, formation and impacts of volcanic eruptions. ... Reducing the impacts of earthquakes and volcanoes; Population and settlement - iGCSE Geography. Introduction to population; ... Case Study - Inner City Redevelopment - London's Docklands; Volcanoes.
